Designing Modular Shielding Walls With Borated PE Sheets

When you design a shielding wall, you don’t just fight radiation.
You also fight space, budget, and future upgrades.

That’s where modular shielding walls with borated PE sheets come in.
You get solid neutron protection, clean installation, and later you can still tweak the wall like Lego blocks, not like poured concrete.

Why Use Borated Polyethylene Sheets For Modular Shielding Walls

Polyethylene (PE) already has a big advantage: it’s full of hydrogen.
Hydrogen slows down fast neutrons. Then we add boron into the PE. Boron “eats” thermal neutrons.

So borated polyethylene (borated PE) works like this:

• PE part: slows fast neutrons down
• Boron part: captures slow neutrons
• Result: less neutron streaming, less headache on your dose map

Compared with heavy concrete only, borated PE sheets:

• are lighter
• are easy to machine (you cut, drill, rout like other plastic)
• are modular – you can treat them as panels, not as a monolithic wall

Below is a simple comparison you can put in front of an engineer or safety officer.

Table 1 – Typical Properties: Plain PE vs 5% Borated PE Sheet

You see, the material itself is not exotic.
It’s just PE + boron, but used smart inside your shielding wall.

Key Design Parameters For Modular Borated PE Shielding Walls

Radiation Source And Neutron Spectrum

Before you drop any 3D model into CAD, nail these points:

• What is the source? LINAC, isotope, research beam line, or something else?
• What is the neutron energy spectrum? Fast only, or wide spectrum?
• What dose limits do you need outside the wall? (regulation + hospital / plant rule)

If you don’t know the spectrum, you risk over-design or under-design, both very painful later.

Boron Content In Borated Polyethylene Sheets

You don’t always need the same boron content.
Too low, neutron capture is weak. Too high, cost and density go up, and machining may become less friendly.

Table 2 – Boron Content Options In Borated PE Sheets (Conceptual)

So in many “normal” linac or lab projects, 5% borated PE is like the workhorse grade.
If you have a “hot spot” or short TVL budget near a beam line, then high-boron grade may enter the discussion.

Panel Thickness And Layer Build-Up

Instead of asking “Do I need 150 mm?” you can think like this:

• Use steel / lead / heavy concrete to handle gamma / X-ray
• Use borated PE to handle neutrons and secondary gamma from capture

Then you decide:

• Total borated PE thickness (for example 100–150 mm, depending on calc/simulation)
• Number of layers (e.g. 4 × 25 mm instead of 1 × 100 mm)
• How to stack them in a modular frame

This layer concept：
You can always add one more borated PE layer if future upgrade makes the beam stronger.

Building Modular Shielding Walls With Borated PE Panels

Now we move from numbers to real hardware.
Modular design means people on site can install, reconfigure, and repair without major civil work.

Panel Size, Joints And Fixing

Typical borated PE sheets come in plate sizes similar to other engineering plastics. For example:

• about 1000 × 500 mm, 1200 × 2400 mm, and custom cut sizes
• thickness from 10 mm up to 50–70 mm for one layer

In a modular wall you care about:

• Joint design – use overlap joints, tongue-and-groove, or step joints, not straight “butt” joints
• No streaming paths – that’s another piece of industry slang you hear a lot (nobody wants a “neutron highway” through the wall)
• Mechanical fixing – bolts, brackets, or frames that don’t crush the sheet and don’t leave big gaps

Because borated PE is still a PE base, you can machine it similar to UHMWPE or HDPE.

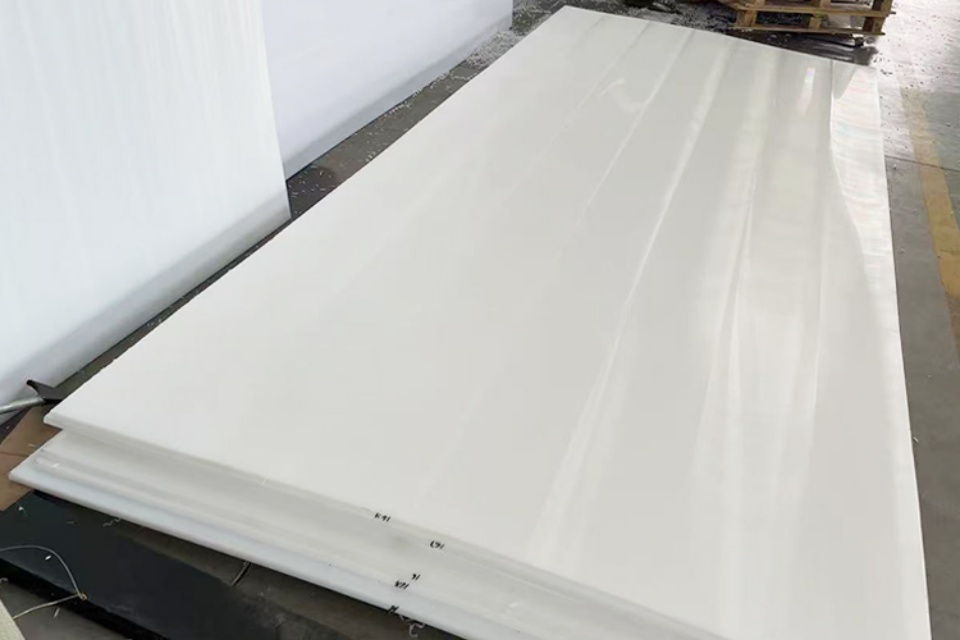

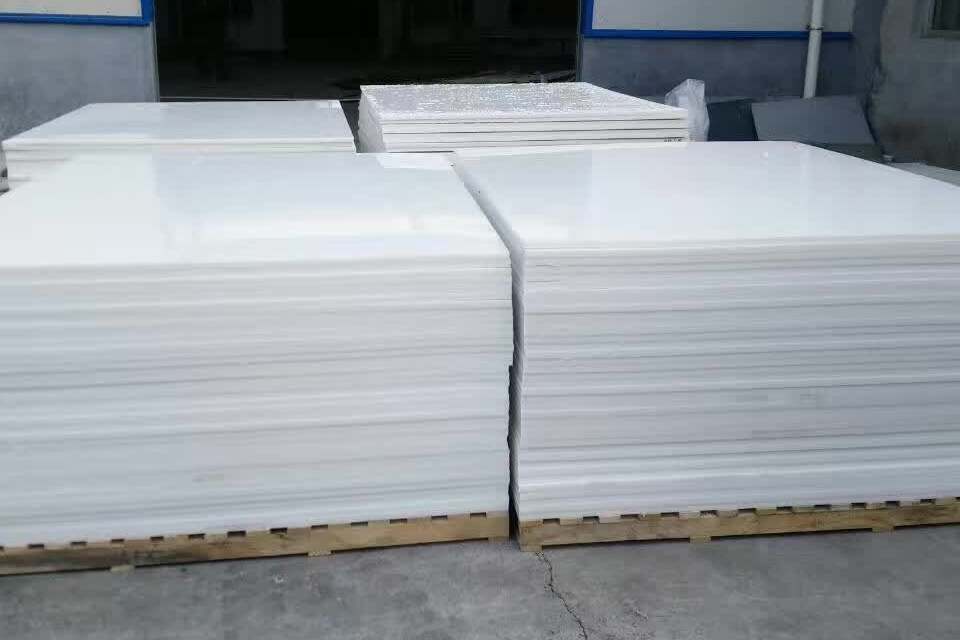

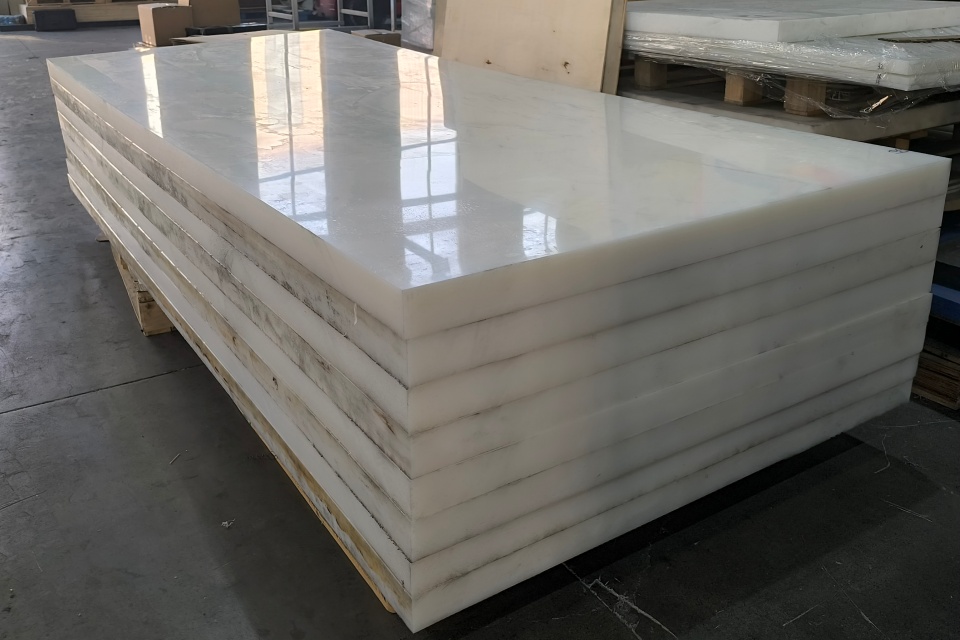

If you already buy floor ball dasher boards from Dongxing Rubber, you know the feel: solid, tough, but easy to cut to size or route a slot.

Combining Borated PE With Steel, Lead Or Concrete

In many modern installations, the wall is like a sandwich:

• Outer or inner skin: steel plate or lead sheet
• Core: borated PE sheets
• Maybe plus concrete or heavy blocks behind

This hybrid build helps you:

• block photons with steel/lead
• slow and capture neutrons with borated PE
• keep overall thickness and weight under control

And because the borated PE part is modular, you can adjust the layout based on your dose map after commissioning.

Practical Use Cases: From Linac Rooms To Temporary Shielding Walls

Let’s look at a few typical scenes, not just theory：

• Hospital linac room upgrade
  • Old concrete wall is almost enough, but not fully.
  • You add a modular frame inside and line it with borated PE panels and maybe one more steel layer.
  • If one direction shows higher dose, you only reinforce that bay with extra panels, not the whole room.
• Research beam line with changing layout
  • Equipment moves, beam ports change, “temporary” becomes “semi-permanent”.
  • Modular borated PE walls let you build local neutron shielding around new hot spots without pouring new concrete maze every year.
• Temporary shielding during commissioning or maintenance
  • You can assemble free-standing borated PE screens, sometimes combined with steel carts.
  • When job finish, you just disassemble and store modules. Wall go to warehouse, not landfill.

In all these use cases, flexibility is the keyword.
Concrete is forever; borated PE modular panels are more like hardware that you can tune.

How Dongxing Rubber And UHMWPE-Manufacturer Support Your Project

Dongxing Rubber, through uhmwpe-manufacturer.com, already runs as a High-Performance Engineering Plastic Products Manufacturer.

Dongxing Rubber focuses on:

• customization for OEM/ODM shielding modules
• bulk wholesale for big radiation projects
• fast sampling (days, not months) and quick response, so your design loop is shorter

So, when you plan your next modular shielding wall with borated PE sheets, you don’t just choose a material.
You choose a partner who can turn that material into real, well-fitted panels that drop into your frame and simply work.

Maybe the simulation part is complex, but the hardware doesn’t need to be.
