Borated PE vs Water/Concrete/Lead: Pros, Cons, And Hybrid Stacks

When you start to design real radiation shielding, you quickly see one thing:
no single material can do all the job.

Borated polyethylene (Borated PE), water, concrete, and lead all look “standard” in drawings. But they behave very different once you care about dose rate, hot spots, install space, and your shielding budget.

Below we walk through how each material works, then talk about smart hybrid stacks you can actually use in projects.

Radiation Shielding Materials Overview

For shield design, you normally care about three things:

• Neutrons (fast + thermal)
• Gamma rays (including capture gammas)
• Real-world stuff: weight, thickness, install, long-term service

Here is a simple comparison table you can show to your team. The numbers are typical reference values to reach similar neutron attenuation in one common test case. They are not exact design data, but the trend is right and useful.

Material Properties And Required Thickness

So, already you see why Borated PE is so popular:
thin, light, and very effective for neutrons.

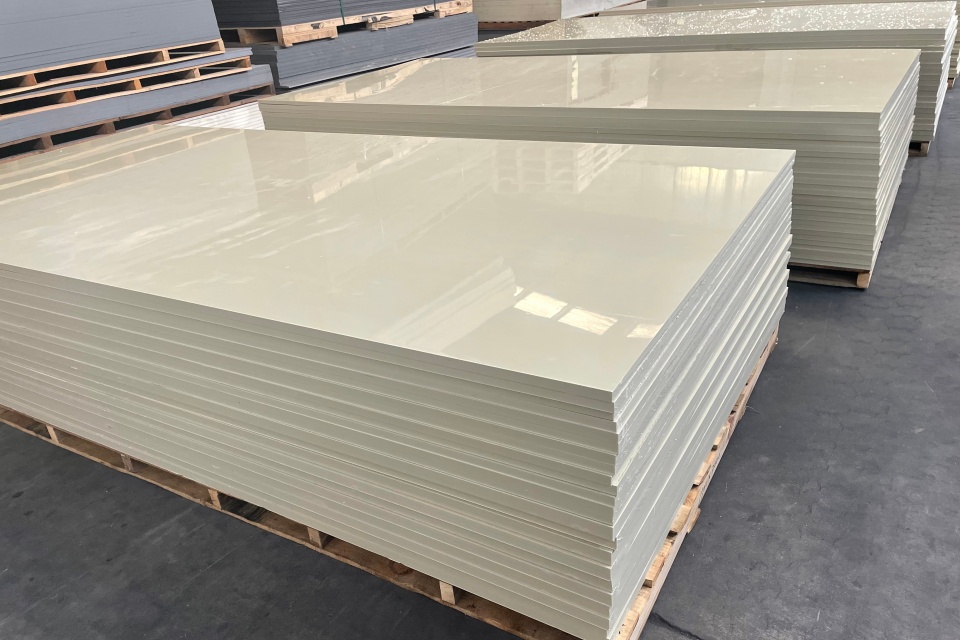

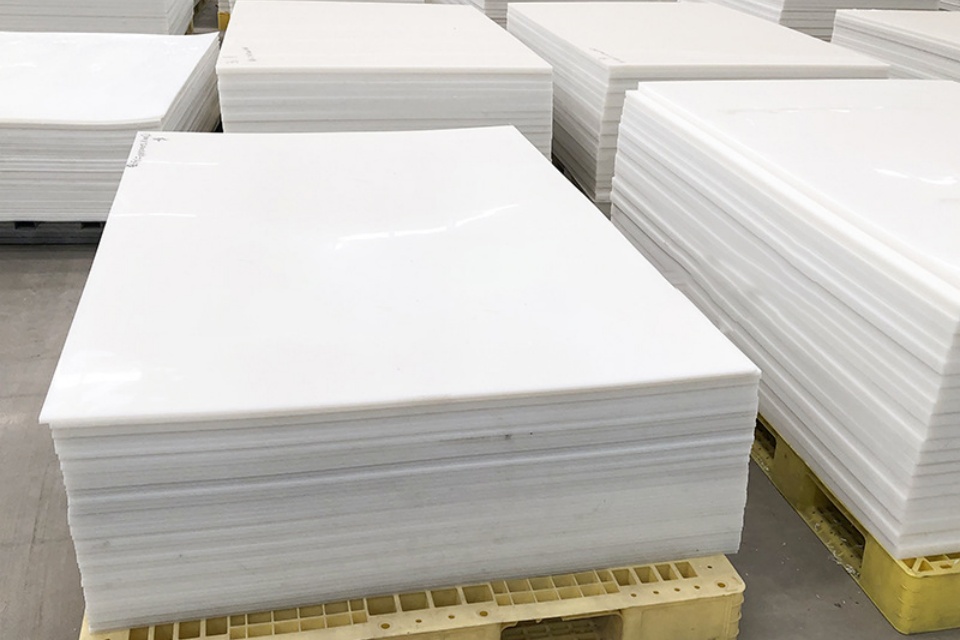

Dongxing Rubber focus on this type of high-performance PE products. We already run similar extrusion and sheet processing for UHMWPE & HDPE sheets and plates, fender pads, outrigger pads, ground mats and hockey practice shooting pads, so moving to borated grades for shielding walls is a natural step.

Borated Polyethylene Neutron Shielding Performance

Borated PE is basically polyethylene + boron compound (often 5–10% by weight).
The idea is simple:

• Hydrogen in PE slows down fast neutrons
• Boron (B-10) captures the thermal neutrons and ends the story

Why engineers like Borated PE

You get some very practical benefits:

• High neutron efficiency
  Thin panels already cut neutron flux a lot, especially for thermal and epithermal range.
• Lower weight
  Around 1.0–1.1 g/cm³, easier for installation and retrofits.
• Easy machining
  You can saw, drill, route, and countersink like other PE plates. No crazy tools.
• Modular design
  You can make tongue-and-groove panels, interlocking blocks, sliding doors, mobile carts, etc.

In real jobs, people use Borated PE:

• As inner liner on concrete walls
• Inside neutron cask doors
• Around accelerator beam dumps
• As local shielding blocks around problem hot spots found in dose survey

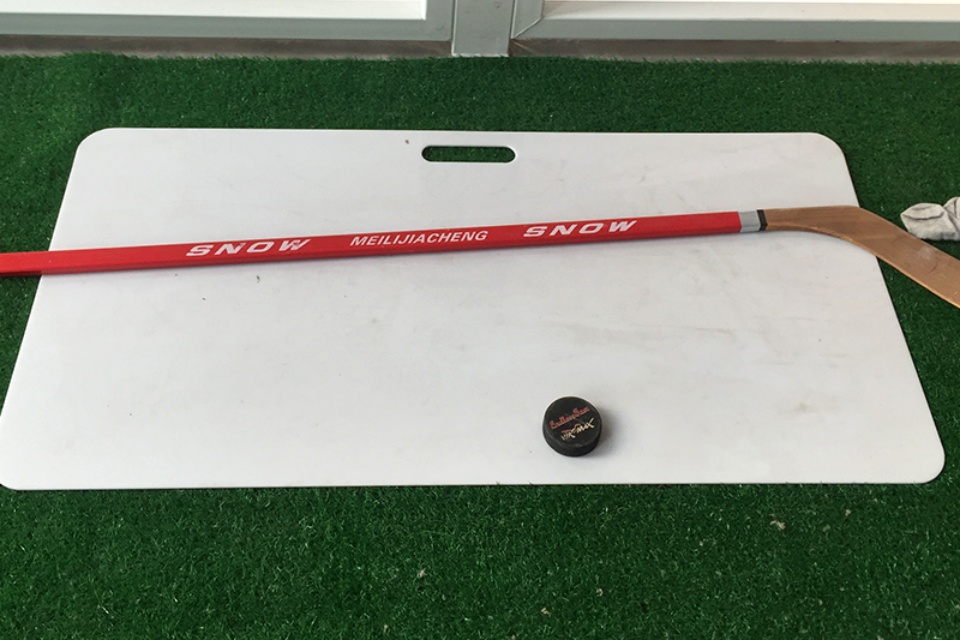

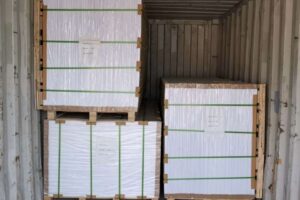

At Dongxing Rubber we see similar handling needs in ice rink products and practice pads: big sheets, impact resistance, smooth surface, precise flatness. The same process control is useful when you ask for stable borated plates for shielding.

If you want more dedicated boron boards, you can also look at our lead-boron polyethylene plates and borated polyethylene sheet solutions for custom shielding projects.

Water Neutron Shielding Characteristics

Water is the classic neutron shield. Cheap, easy to understand, and works well for slowing down neutrons.

Pros:

• Very good neutron moderation (high hydrogen content)
• Material itself is cheap and everywhere
• Good for huge volumes: spent fuel pools, reactor pools, storage tanks

Cons:

• Needs tanks, liners, structures to hold it
• Risk of leakage, corrosion, contamination
• Hard to use in tight spaces or small retrofits
• Needs more thickness than Borated PE for the same neutron job

So if you design a new facility with big civil works, water walls and pools may look fine.
But when you want a thin, dry, clean wall panel, water becomes very awkward.

Concrete Radiation Shielding Properties

Concrete is the workhorse in most drawings. It gives you:

• Structure + shielding in one body
• Decent gamma attenuation
• Some neutron slowdown, because it has water and light elements inside

However, concrete is heavy and not very flexible:

• If you need stronger neutron shielding, you often must go very thick
• Once poured, it is hard and expensive to change
• Floor loading can be huge for tall walls

That’s why many engineers now think like this:

“Let concrete do structure and some shielding.
Then let Borated PE do the fine neutron work.”

A typical detail is:

• 300–600 mm concrete wall
  • 25–100 mm Borated PE inner liner, fixed by mechanical fasteners

This way, you still use standard civil work, but you tune the radiation performance later with plastic liners from suppliers like Dongxing Rubber.

Lead Gamma Shielding Properties

Lead is very dense and great for gamma. But for neutrons, it is almost “transparent”.

What lead does well:

• Thin sheets already give strong gamma attenuation
• Good for hot cells, PET/CT rooms, X-ray labs, etc.
• Easy to combine with steel, doors, or cabinets

What lead does bad for you:

• Almost no neutron moderation or capture
• Heavy, so hinges, walls, ceiling all see high load
• Toxic, so you worry about handling, dust, waste and regulations

Because of this, lead becomes a specialist in your stack:
you use it to catch gamma rays and capture gamma, not to fight neutrons.

Hybrid Shielding Stacks Design For Neutrons And Gamma Rays

Most modern layouts end up with hybrid stacks. You combine materials to control both neutrons and gamma, while still respecting space, weight and budget.

Here are three common stack ideas you can quickly pitch in an internal meeting.

Concrete + Borated PE Wall System

• Outside layer: thick concrete (structure, basic shielding)
• Inside layer: Borated PE plates, bolted or anchored

Use this when:

• You build or already have concrete bunkers
• You want to upgrade neutron performance without rebuilding the wall
• You need good long-term stability and simple maintenance

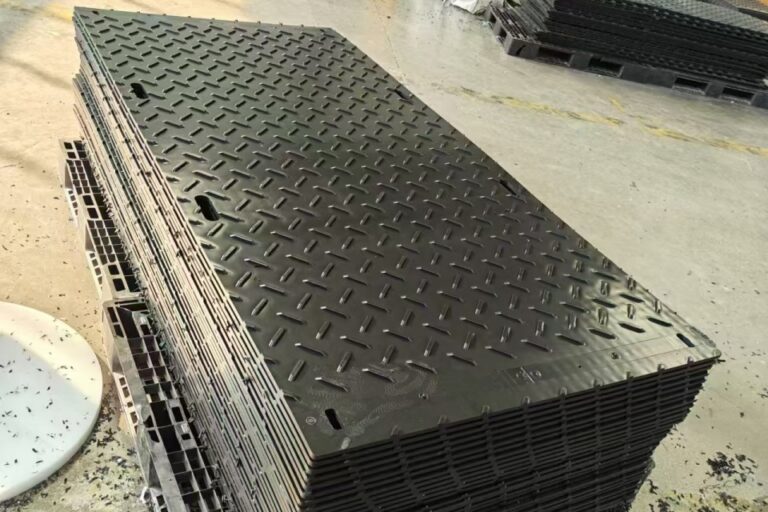

Dongxing Rubber can supply borated plates cut to size, similar to how we supply custom UHMWPE ground mats and ground protection road mats: CNC cutting, beveled edges, counterbored holes, simple install on site.

Borated PE + Lead Sandwich Panel

• Source side: Borated PE (slow + absorb neutrons)
• Outside: lead sheet (handle gammas from capture and primary source)

Use this when:

• You have mixed neutron + gamma fields, like around certain neutron sources
• Space is tight and you want high performance in a thin stack
• You need mobile shields or movable doors

Typical “industry slang” for this in the team is “PE-lead sandwich” or “stack-up panel”.
You may also hear tech guys say “let PE bite the neutrons first, then let lead mop up the gammas”.

Lightweight Modular Shields And Carts

For maintenance jobs or temporary hot spots you can:

• Build Borated PE blocks on steel frames
• Add small lead masks where gamma is still high
• Put the whole thing on casters for easy move

Here you really feel the advantage of plastic:

• Lower weight than concrete
• No water leakage risk
• You can machine the panel to fit around pipes, valves, cable trays

Choosing Shielding Materials For Real Projects

When you sit down with your team, the question is not “which material is the best”.
The question is more like:

• What is dominant radiation here, neutrons or gamma?
• How much space do we have for walls or carts?
• What is floor load and building structure limit?
• How easy we need to install, change, or extend later?

A simple way to think:

• If neutrons are important and space is tight → Borated PE must be in the stack
• If gamma is heavy → add lead or a high-Z layer
• If you need structure → let concrete or steel carry the load, not plastic alone
• If you want flexible, modular solution → go more to borated PE blocks and panels

For Dongxing Rubber, this fits our core position as a high-performance engineering plastic products manufacturer.
We already run UHMWPE and HDPE sheets, fender pads, outrigger pads, ground protection & road mats, ice rink products and custom PP/PE products. The same OEM/ODM services mindset works for borated PE: we listen to your shielding drawing, then cut, drill and assemble panels so your on-site team don’t waste time.

You don’t have to design one “perfect material”.
You design a smart combination of materials, and let each one do the job it is good at.
Borated PE just happens to be very good at the neutron part of that story, and that is why more and more engineers bring it into their water/concrete/lead shields as a key layer.
