Here’s a field-tested, no-nonsense guide to tell UHMWPE from HDPE using simple checks. It’s practical, a bit scrappy, and it works. We use these steps every week when customers ask for ground protection mats, Amphi Mats, and other stock shapes. If you need bulk supply or custom runs, Dongxing Rubber supports OEM/ODM and large-lot orders—fast quotes, low drama.

UHMWPE vs HDPE: Quick Comparison Table (Field Use)

UHMWPE vs HDPE Friction Test (COF, “Slide on Steel”)

What to do. Clean a steel plate. Set two equal coupons upright. Tilt slow. The one that creeps first is typically UHMWPE.
What you’ll feel. UHMWPE is almost “self-lubed.” HDPE is slick too, but not that slick.
Where it matters. If you’re speccing ground protection mats or Amphi Mats for wet, clay soils, lower COF helps panels shuffle and self-align under tracked loads instead of snagging. Less heat, less galling, fewer “hot spots.”

Vicat Softening Cue Near Boiling Water (UHMWPE vs HDPE)

What to do. Dip a corner in hot water ~100 °C for half a minute. Don’t cook it—just a cue.
Read it. UHMWPE shows earlier softness; HDPE holds shape closer to boiling.
Why you care. For road mats or outrigger pads working under sun + load, HDPE keeps a touch more stiffness at the same temperature band. UHMWPE trades stiffness for insane wear life. Pick your poison based on the use case.

Machining Swarf Behavior (Stringing vs Chips)

How to check. Take a light pass with a sharp end mill or drill.
Result. UHMWPE throws angel hair—long, stringy swarf. It loves to wrap the tool if you baby the feed. HDPE cuts cleaner at the same RPM/ipt.
Shop note. For UHMWPE, bump feed, keep tools razor sharp, and add a firm chip-breaker strategy. Otherwise the edge fuzzes, and yeah, it looks messy.

Surface Scratch & Recovery (Lubricity + Toughness)

Quick feel test. Drag a blunt nail or a rounded screwdriver across a hidden zone.
Read it. UHMWPE feels waxy. Light marks can “relax” visually after a moment. HDPE shows the scratch more plainly.
Why it’s useful. If you’re choosing liners or wear rails, UHMWPE shrugs off scuffing. For ice rink dasher kick-plates, the slicker face cleans easier. Less stick-slip. Cleaner glide.

Tap-Tone & Hand-Flex (Modulus Difference)

How to do it. Tap two same-size blanks together; then flex lightly.
What you’ll notice. HDPE is a bit stiffer; the tap sounds “brighter.” UHMWPE feels springy, like it wants to bounce back.
Decision angle. Need a panel that stays flatter under load? HDPE might be your guy. Need a liner that eats abrasion for breakfast? UHMWPE, no contest.

Skive, Face-Mill, and Edge-Finish (Shop Floor Reality)

The move. Try a shallow skive with a fresh utility blade or take a face-mill kiss.
Telltale. UHMWPE smears if your setup isn’t dialed. Edges can fuzz. HDPE usually leaves a cleaner edge with the same settings.
Process hack. For UHMWPE: higher feed, keen geometry, and avoid rubbing. When you see “heat haze,” you’re polishing, not cutting.

Abrasive Belt Pass (Wear Resistance, Heat Haze)

Simple pass. Press both samples on the same belt, same time, same force.
Reading. UHMWPE shows lighter scuff and less haze. HDPE abrades a little more, prints the belt pattern heavier.
Real world. In haul road and crane pad scenarios, UHMWPE’s wear profile stretches service life. Fewer swaps, fewer shutdowns.

Field Scenarios (Where the Choice Pays Off)

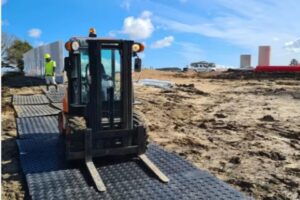

• Temporary access roads / Ground Protection & Road Mats.
  Soft subgrade? Rain week? UHMWPE mats spread load, resist gouging, and stay slick enough to reposition without tearing the soil. HDPE mats work too, but can scuff faster on tracked gear.

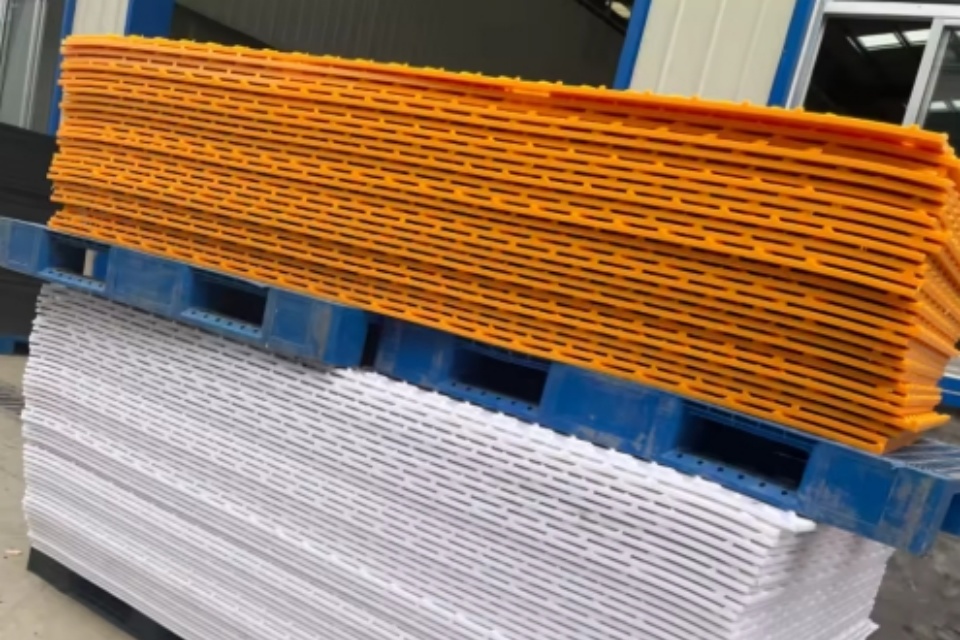

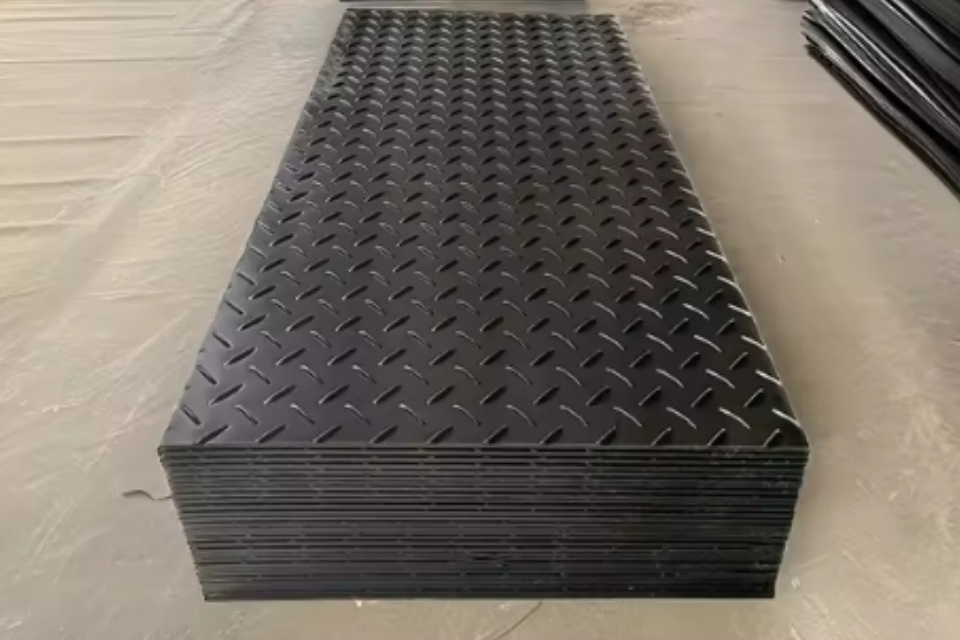

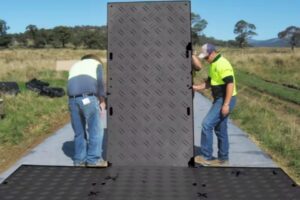

• Amphi Mats for shoreline and amphitheater-style terrains.
  Mixed moisture, step loads, and turn-in forces need a low-friction, high-wear surface—classic UHMWPE territory. See our Amphi Mats for specs, thickness options, and connection styles.
• Outrigger pads & cribbing.
  When you need higher rigidity at a given thickness, HDPE often feels better under the jack. If skid is the pain point, UHMWPE pads reduce stick-slip. Many fleets blend both: HDPE for core rigidity, UHMWPE as a wear skin.
• Liners, hoppers, and chutes.
  UHMWPE wins. Low COF keeps bulk media moving, less arching. Less downtime. Less “we’ll be there soon but actually we’re clearing a blockage.” You know that pain.
• Ice rink boards & recreational edges.
  Want easier scrape-down and a face that doesn’t grab the puck? UHMWPE gives you the glide. For budget boards, HDPE is fine; for premium feel, UHMWPE is the upgrade that users don’t see but feel.

Buyer’s Corner

• COF (coefficient of friction): UHMWPE lower. Good for sliding surfaces.
• Vicat: softening cue; UHMWPE lower. Watch hot climates.
• Modulus: HDPE higher. Panels feel stiffer.
• Swarf control: UHMWPE strings; plan chip-breaking.
• Heat haze: Visual cue you’re rubbing, not cutting. Adjust feeds/speeds.
• Creep & cold flow: Plan bearing area; both are polyethylenes.
• Filled grades: Glass, carbon, or textures can fake your tests. Re-check on a flat virgin face.

Why This Matters for Your Project

You need fewer swaps, fewer callbacks, and predictable lead times. That’s the whole game. Dongxing Rubber builds UHMWPE & HDPE parts—Ground Protection & Road Mats, Ice Rink Products, MG Engineering Plastic Sheets, Nylon Sheets, PP/PE Products—for contractors who order by the truckload. We do customization, bulk wholesale, OEM/ODM, and we keep the samples 3–15 days / production 3–20 rhythm tight. A real person replies in 24 hours.

How to Run These Checks Fast (SOP-ish)

1. Clean, compare, confirm. Friction test + scratch feel.
2. Heat cue. Quick near-boiling dip—don’t warp it, just probe.
3. Cut once. Skive a shaving; look for smear vs clean edge.
4. Decide. If abrasion is king → UHMWPE. If stiffness at thickness is king → HDPE.
5. Document. Snap a pic, note the result, move on.

If you’d like a laminated checklist, we can toss one in your sample box. No charge, just ask.

Mini Data Sheet

• UHMWPE: ultra-low friction, crazy abrasion resistance, tough as nails, strings when machined, softens sooner near boiling, springy feel.
• HDPE: still slick, stiffer at same thickness, cleaner chips, better shape hold at heat, abrades faster under grit.

FAQ You Actually Ask

• “Can I mix them in one mat?”
  Yes. Many customers run HDPE cores for stiffness with UHMWPE wear faces. Good balance of rigidity and glide.
• “Which for swamp access?”
  UHMWPE faces. Less plowing, easier reposition, happier operators.
• “We cut on site; will UHMWPE fight us?”
  It can. Use keen tools, real feed, and manage swarf. We’ll share our chip-breaker notes—no secrets.

Where to Start (Next Steps)

• Need Amphi Mats for shoreline, wetlands, or tiered seating grounds? Jump to Amphi Mats.
• Not sure what you’re holding right now—UHMWPE or HDPE? Send a photo and size. We’ll walk the tests over a call.
• Bulk order ready? Tell us load case, soil type, and preferred connector system. We’ll lock spec fast.

Bottom line: use two or three quick checks—friction, heat softening cue, and edge-finish—to tell UHMWPE from HDPE without a lab. Then pick the grade that solves your pain: wear life vs stiffness. Dongxing Rubber can build it either way, at scale, with the turnaround you actually need.
